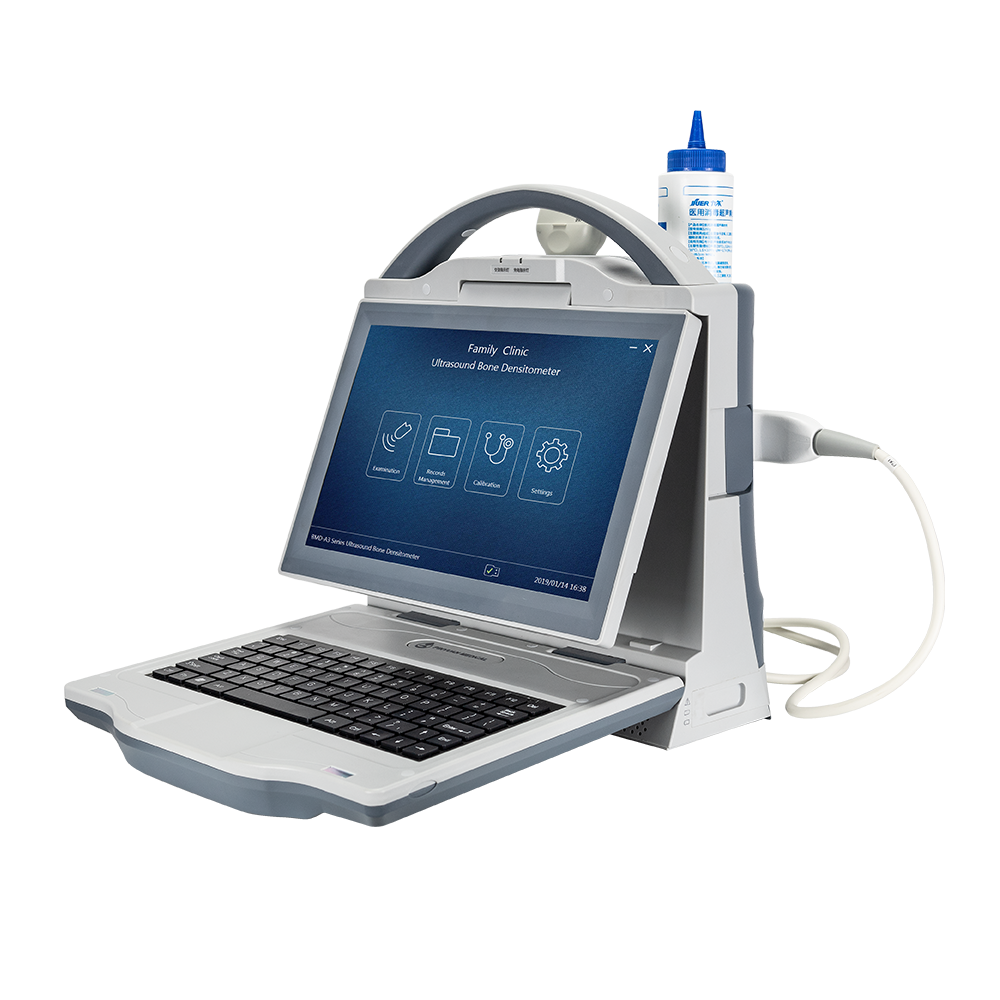

BMD-A3 Portable Ultrasound Bone Densitometer

Portable Ultrasound Bone Densitometer BMD-A3

Technical Specifications

 Large Scale Integrated circuit

Multi - layer circuit board design

High shielding multipoint signal contact mode

Precise mould manufactured

 Famous Brand Embedded Industrial Control Computer

Special analysis system based on different countries people



Technical features:
1.Using the full dry technology,  makes diagnostic more convenient.
2.The probe adopt the Technology of the United States DuPont, makes the probe to receive higher sensitivity and better reception.
3.the better ultrasonic frequency on the measuring position, with better penetrability, more effective signal
4.use the ultrasonic axial conduction technology, double emission and double receiving, it can provide more effective data
5.With innovative algorithm, effectively remove clutter and jamming signal, to  get the valid data.
6.With a special correction system, to correct the system error effectively, get more accurate measurement results.
7. multipoint access mode with high shield and mold manufacturing, to ensure the lossless transmission of the ultrasonic signals.
8. it  with multi race clinical database, including: European, American, Asian, Chinese, WHO international compatibility. It measuring the people between the age of 0 and 100.
9. English menu
10. the first one pass EMC test
11. CE certificate.
12. ISO Certificate.


Performance parameter:

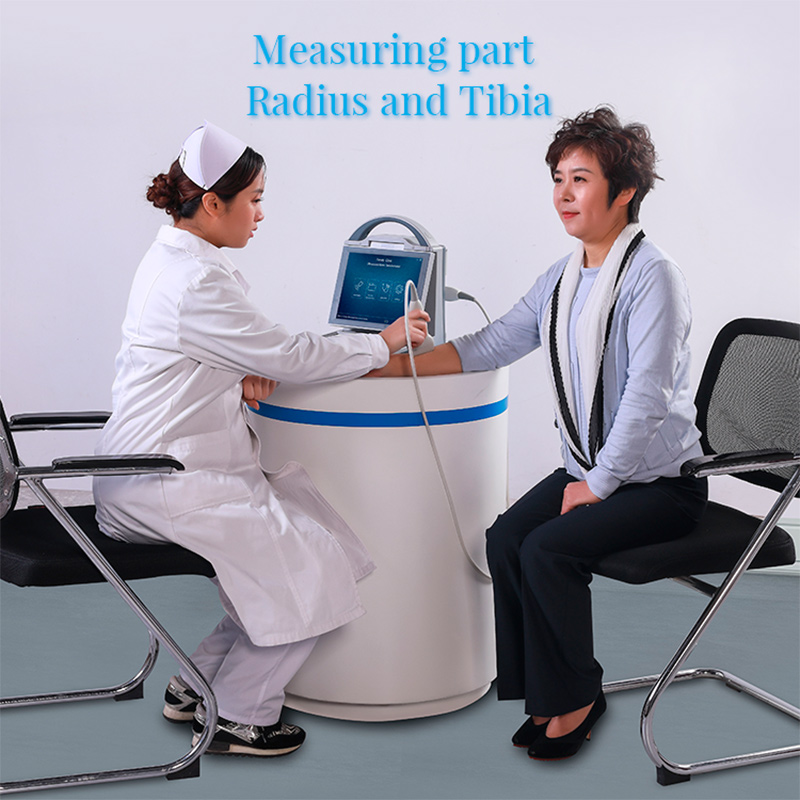

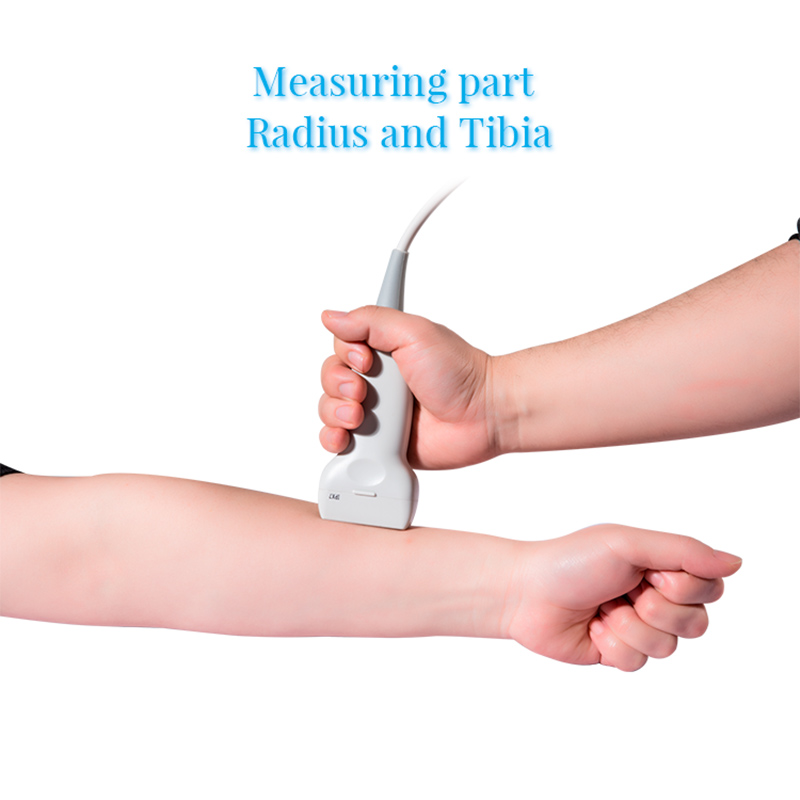

1.Measurement parts: radius and Tibia
2. Measurement  mode: double emission and double receiving
3.Measurement parameters:  Speed of sound (SOS)

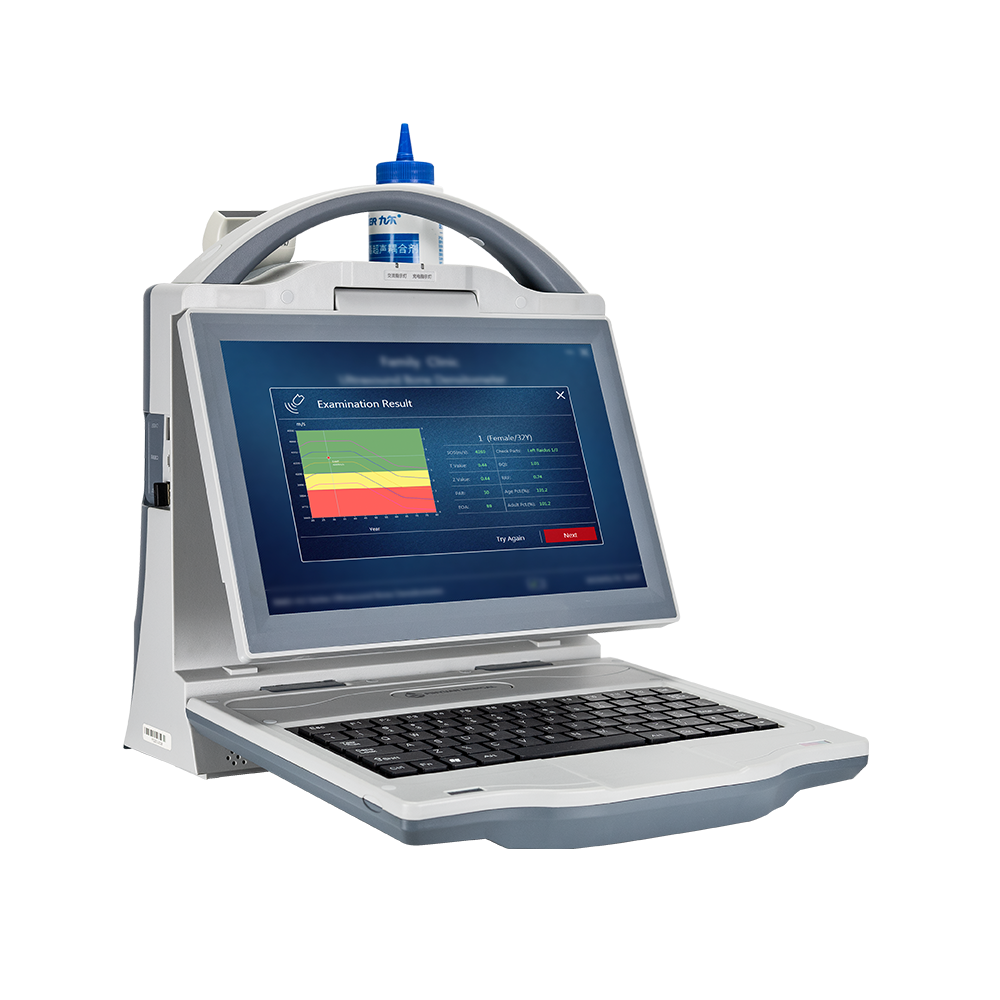

4.Analysis Data: T- Score, Z-Score, Age percent[%], Adull percent[%], BQI (Bone quality Index ), PAB[Year]  (physiological age of bone), EOA[Year] (Expected Osteoporosis age), RRF(Relative Fracture Risk).
5.Measurement  Accuracy : ≤0.25%
6.Measurement Reproducibility:  ≤0.25%
7.Measurement  time: <25 seconds
8.Probe frequency : 1.20MHz
9.Date analysis :  it adopt a special intelligent real –time data analysis system, it selects the adult or child databases according to the age automatically .
10. Temperature control: Perspex sample with temperature instructions
11. Probe measurement navigation:  this equipment display the Axial angle ,  the Horizontal Angle , the Direction Angle between the probe and the bone plane, it display the change of the real-time angle data.  It is easy to correct the measure angle quickly, improving the measure speed , improving the data Accuracy.
12. Probe crystal indication: it display the working condition for the four crystal of the probe, and the signal strength for the ultrasonic reception.
13.Daily Calibration:  automatic calibrating after power on.
14.All the people of the world. It measuring the people between the age Of 0 and 100,(Children: 0-12 years old, Teenagers: 12-20 years old, Adults:20-80 years old, The Elderly 80-100 yeas old,  only need to input the age and recognizing automatically .
15. Temperature display calibration block:  the calibration with pure copper and Perspex,  the calibrator display current temperature and standard SOS. The equipment leave the factory with Perspex sample.
16.repot mode: color
17. Report format: supply A4, 16K ,B5 and more size report

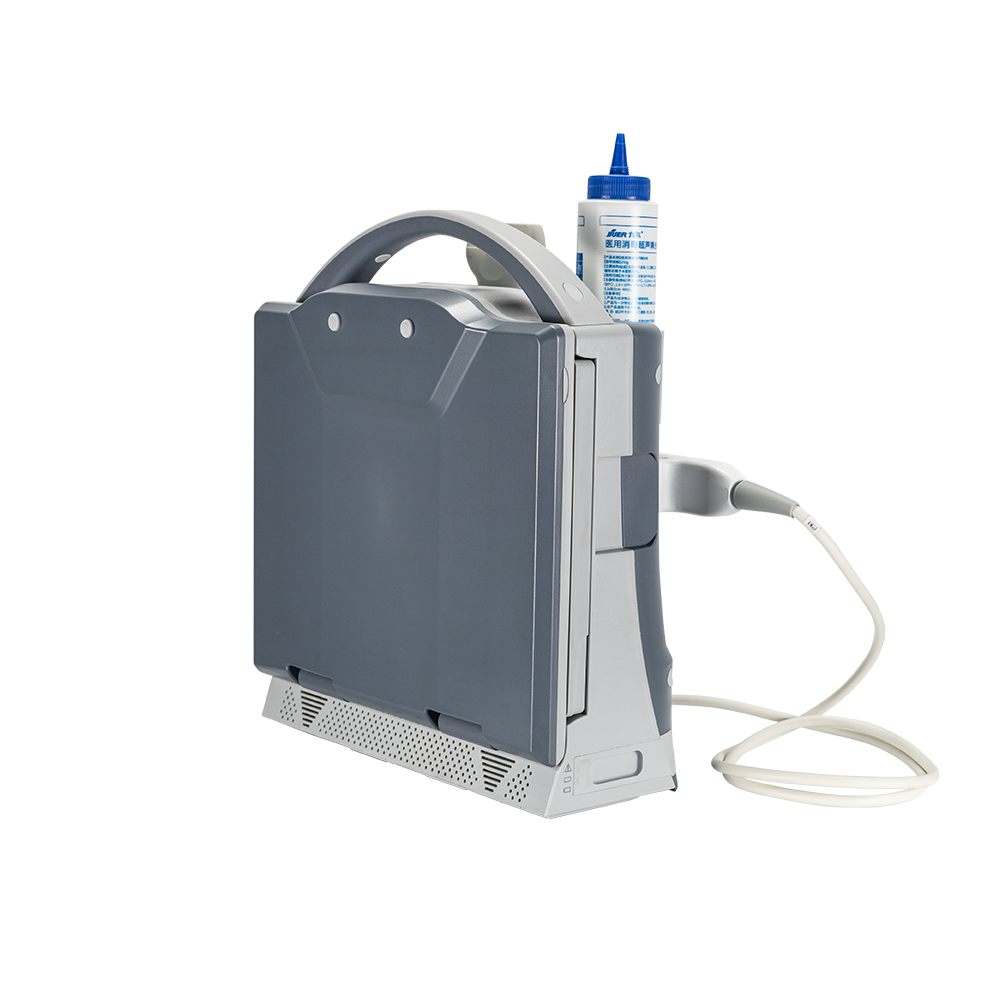

18.Portable model
19. Computer configuration: CPU dual core, 4G memory, electronic hard disk, wireless mouse
20.Printer: optional
21.Bone densitometer probe connector: multipoint access mode with high shield and mold manufacturing, to ensure the lossless transmission of the ultrasonic signals.
22. External medical special power supply, power>60W
23. Connect to the internet and provide remote services.
24.Monitor: 10.4’ color HD color LED monitor.
25. Fluid Protection: main unit waterproof level IPX0, probe waterproof level IPX7
26.Main unit weight< 4kgs, easy to carry


Ultrasound Bone Densitometer BMD-A3 has extensive application. This portable model is the best choice for hospital outgoing examination, hospital wards,

Mobile Inspection, Physical Examination Vehicle, Pharmaceutical factory, Pharmacy and Health Care Products promotion.



Our Ultrasound Bone Densitometer always used for Maternal and Child Health Centers, Geriatric Hospital, Sanatorium, Rehabilitation Hospital,

 Bone Injury Hospital, Physical Examination Center, Health Center, Community Hospital, Pharmaceutical factory,   Pharmacy and Health Care Products Promotion

The Department of the General Hospital, Such as Pediatric Department, Gynecology and Obstetrics Department, Orthopedics Department,

Geriatrics Department,  Physical Examination, Department, Rehabilitation department

立即咨询

Sales Hotline13775993545

产品型号:BMD-A3便携式超声骨密度仪


测量部位:桡骨,胫骨
测量方式:双发双收
测量参数:轴向骨传播声速SOS
测量准确度:误差≤0.25%
测量重复性:误差≤0.25%
测量时间:单周<10秒,三周期<25秒
探头频率:1.20MHz
探头接入方式:高屏蔽多点接入方式

分析数据:T值、Z值、同龄百分比、骨强度指数(BQI)、骨龄(PAB)、预期发生骨质疏松的年龄(EOA)、相对骨折风险(RRF)
智能数据分析系统:通用数据分析系统
拥有数据库:少年儿童数据库(0-12岁)、青少年数据库(12-20岁)、成年人数据库(20—80岁)、老年人数据库(80-100岁)
系统校准:有机玻璃、红铜双重校准,标配有机玻璃校准模块

模具制造:便携塑胶模具制造
电脑主机:进口品牌微型工控商务计算机
显示器:10.4吋高清彩色显示器
鼠标:戴尔原装无线鼠标
尺寸:25cm×16cm×33cm
产品重量:4.3Kg

产品型号:BMD-A3便携式超声骨密度仪


全干式技术,诊断扫查更加方便。
超声探头采用美国杜邦技术,使得探头接收灵敏度更高,接收信号更好。
应用测量部位匹配度更好的超声频率,穿透性更好,有效信号更强。
应用超声轴向传导技术,双发双收模式,多向自相关技术,使得有效数据密度大。
采用精密算法,抓取有效数据快、计算有效数据密度大,准确度高。
具有独特的矫正系统,有效矫正系统误差,使得测量结果更加准确。
拥有多人种临床数据库,可以测量0-100岁人群。
全中文菜单,操作简单,方便,快捷。
通过电磁兼容EMC检测产品,产品品质更加稳定、可靠。
通过CE认证产品。


■ 无射线,无创伤:BMD-A系列超声骨密度检测仪测量骨密度较X线骨密度测量仪有明显的优势,特别是无辐射,可完全避免X线骨密度仪的致癌、致畸副作用。尤其是在胎儿、儿童青少年时期,由于细胞生长活跃,DNA极易受到射线的损伤而发生癌变。老年人则因受损细胞修复能力降低也使癌变机率增加。因此,因尽量避免在孕妇、儿童青少年和老年人使用X线仪器。为此国家卫生部已有明文规定。而超声骨密度仪没有任何射线,适用于儿童、孕妇、老年人的骨密度检查,安全可靠。


■ 数据库优势:BMD-A系列超声骨密度检测仪采用独特的多数据库系统:
①、少年儿童数据库(0-12岁)
②、青少年数据库(12-20岁)
③、成年人数据库(20—80岁)
④、老年人数据库(80-100岁)
四个数据库系统,使得使用人群更细分,测量结果更准确。
所有的四数据库来自采用世界卫生组织(WHO)标准化数据库中亚洲人群,包括中国、日本、韩国较大综人群的调查数据,通过组合分析和统计处理后优化而成。


■ 操作优势:BMD-A系列超声骨密度检测仪选用桡骨远端1/3部位、胫骨中断部位测量,这些部位易显露,操作简捷,无需消毒。测量速度快,一个测量周期扫描时间小于10秒,三个测量周期小于25秒,测量速度快,方便医生及病人,可用于大人群体检。选择桡骨及胫骨检查不会有交叉感染,如选用脚部测量,则可引起脚气、足癣等霉菌性疾病互相传染。


■ 精度优势:BMD-A系列超声骨密度检测仪超声声速轴向传播技术对物体所含介质的密度变化非常敏感,超声通过骨质时,其速度与骨中主要介质钙的含量(或密度)直接相关。含量高,则声速传播速度快;含量低,则传播速度减慢。当其含量有0.1%变动即能出现传播速度的变化。因此其测量分辨率高,可测到早期骨矿缺乏及骨质疏松症,同时超声还能反映出骨应力方面的信息,可预测骨折风险率。


■ 准确性优势:BMD-A系列超声骨密度检测仪具有领先独一技术-可视定位技术。BMD-A系列超声骨密度检测仪采用双发双收技术,同时取得两个等距离的声速值来提示超声器件与被测骨的平行状态。能够实时显示探头与骨骼平面轴向夹角、水平角度、方向角度,实时显示角度数值的变化。这些实时显示便于快速矫正检测角度,提高检测速度、提高数据准确性。测量时,还能够实时显示探头四个晶体工作状态、超声波接收信号强度。可视定位系统,确保测量的重复性,准确度,探头接入采用高屏蔽多点接入方式,减少信号干扰,增加信号传输的连续性与准确性,采用三周期自动平均计算方法,比单周期测量更加准确。多种技术的应用使得BMD-A系列超声骨密度检测仪中高端型号BMD-A7的准确度、重复性均小于0.1%。


■ 软件优势::BMD-A系列超声骨密度检测仪一台仪器装配有智能分析系统,经济实用。可测量0-100岁人群(儿童年龄段:0-12岁,青少年年龄段12-20岁,成人年龄段20--80岁,老年人年龄段80-100岁,只要输入年龄就能够自动识别进入相应数据库)。
