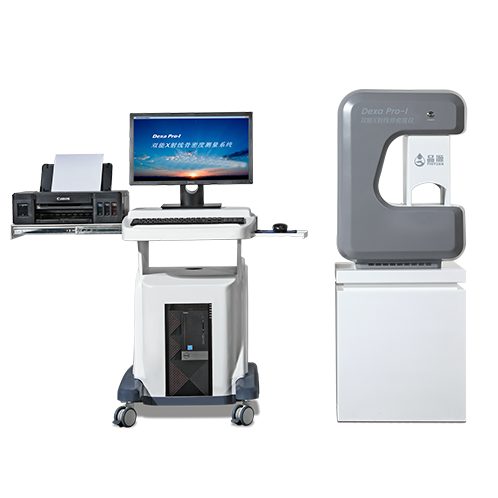

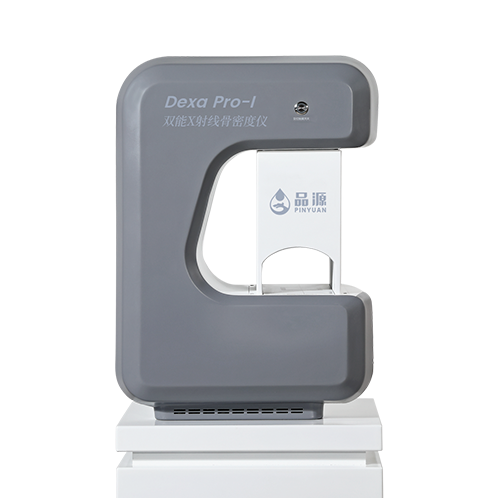

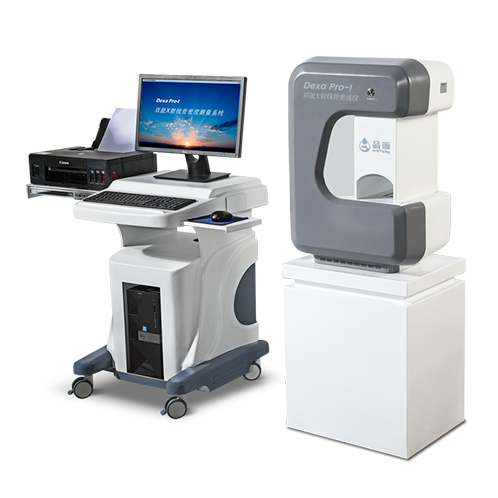

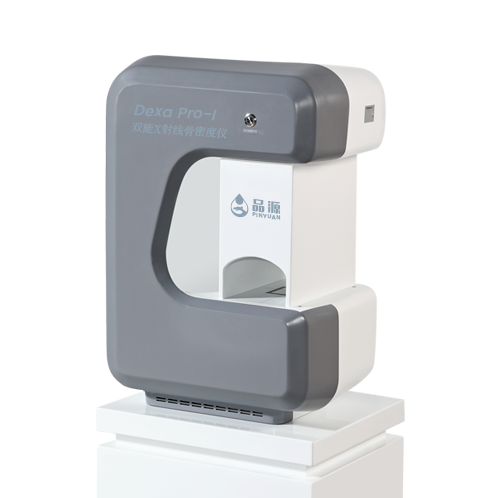

Dexa Bone Densitometer Pro-I (Dual Energy X-ray Absorptiometry)
Technical Specifications
Large Scale Integrated Circuit
Multi -Layer Circuit Board Design
Light Source Technology With High Frequency and Small Focus
Imported High Sensitivity Digital Camera
Using the Cone - Beam and Surface Imaging Technology
Using Laser Beam Positioning Technique
Using the Unique Algorithms.
Mould Manufactured, Beautiful and Practical
Special Analysis System Based on Different Countries People
Technical Parameter:
1. Using the Dual Energy X-Ray Absorptimetry.
2. Using the Most Advanced Cone - Beam
and Surface Imaging Technology.
3. With High Measurement Speed and Short Measurement Time.
4. With Dual Imaging Technology to Get More Accurate Measurement.
5. Using Laser Beam Positioning Technique, Making the Measuring Position More Accurate.
6. Dectcing Image Digitization, to Get Accurate Measurement Results.
7. Adopting the Surface Imaging Technology, Measuring Faster and Better.
8. Using the Unique Algorithms to Get More Accurate Measurement Results.
9. Adopting the Full Closed Lead Protective Window to Measure, only Need to Put the Patient’s Arm into the Window. The Equipment is Indirect Contact with the Scanning Parts of the Patient. Easy to Operate for the Doctor. It is Safety for the Patient and Doctor.
10. Unique Shape, Beautiful Appearance and Easy to Use.
Performance Parameter:
1. Measurement Parts: the Front of Forearm.
2. Pulse Dual Energy X-Ray with High and Low, High Energy 85Kv, Low Energy 55Kv.
3. X-Ray Detector:Imported High Sensitivity Digital Camera.
4. X-Ray Source:Stationary Anode X-ray Tube (with High Frequency and Small Focus)
5. Imaging Way:Cone - Beam and Surface Imaging Technology.
6. Imaging Time:≤ 5 Seconds.
7. Accuracy(error)≤ 1%
8. Repeatability(error)≤1%
9. Measuring Parameter: Bone Density Score
10. Calculate parameter: T- Score, Z-Score
11. Operation: Brand Computer, CPU ≥ 3.2G, Memory ≥ 4G, HD ≥500G
12. Working Voltage: 220V±10%, 50Hz.
Ultrasound Bone Densitometer BMD-A3 has extensive application. This portable model is the best choice for hospital outgoing examination,
hospital wards, Mobile Inspection, Physical Examination Vehicle, Pharmaceutical factory, Pharmacy and Health Care Products promotion.
Our Ultrasound Bone Densitometer always used for Maternal and Child Health Centers, Geriatric Hospital, Sanatorium, Rehabilitation Hospital, Bone Injury Hospital,
Physical Examination Center, Health Center,
Community Hospital, Pharmaceutical factory, Pharmacy and Health Care Products Promotion
The Department of the General Hospital, Such as Pediatric Department, Gynecology and Obstetrics Department, Orthopedics Department, Geriatrics Department,
Physical Examination, Department, Rehabilitation department
Sales Hotline13775993545

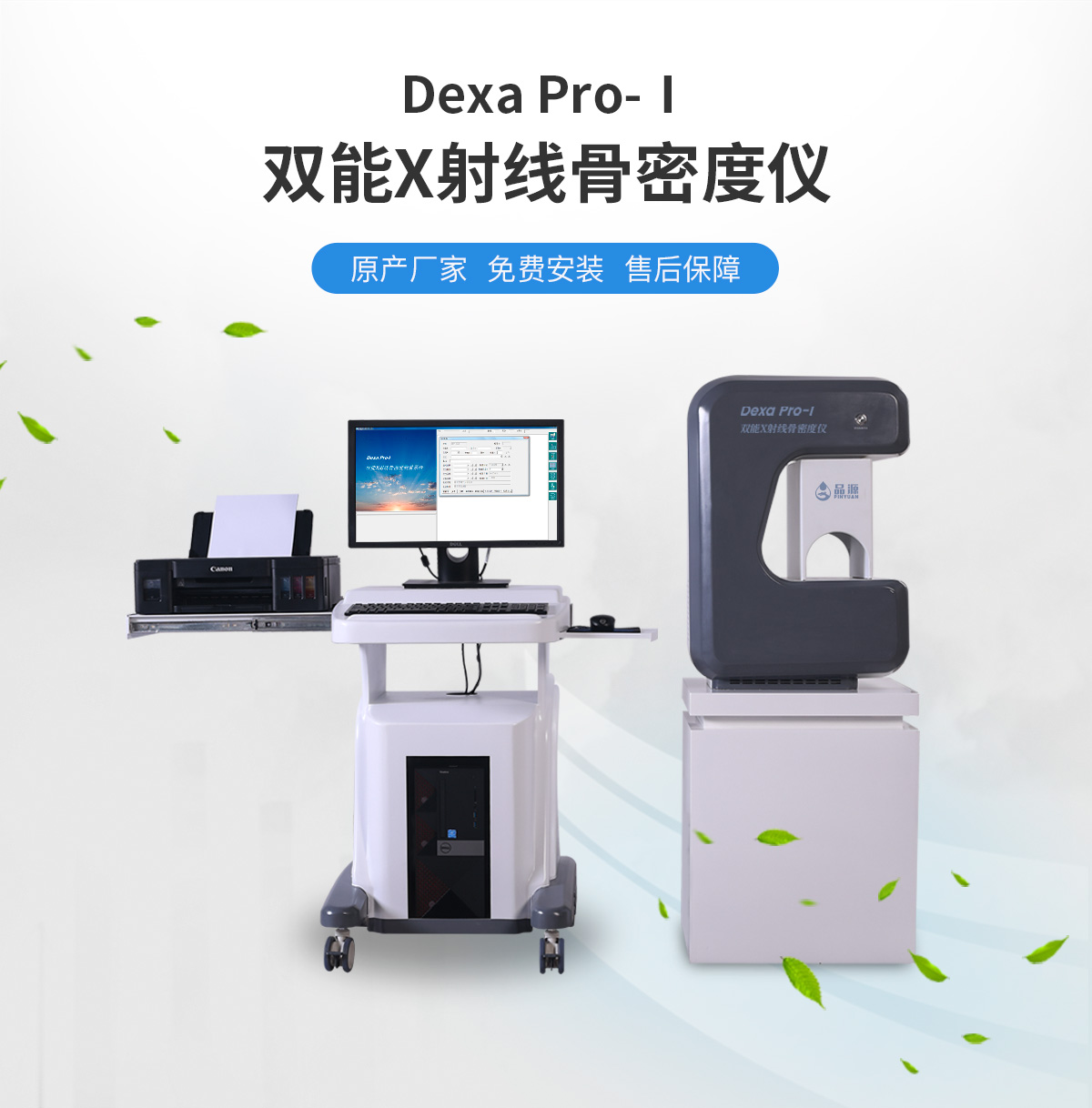

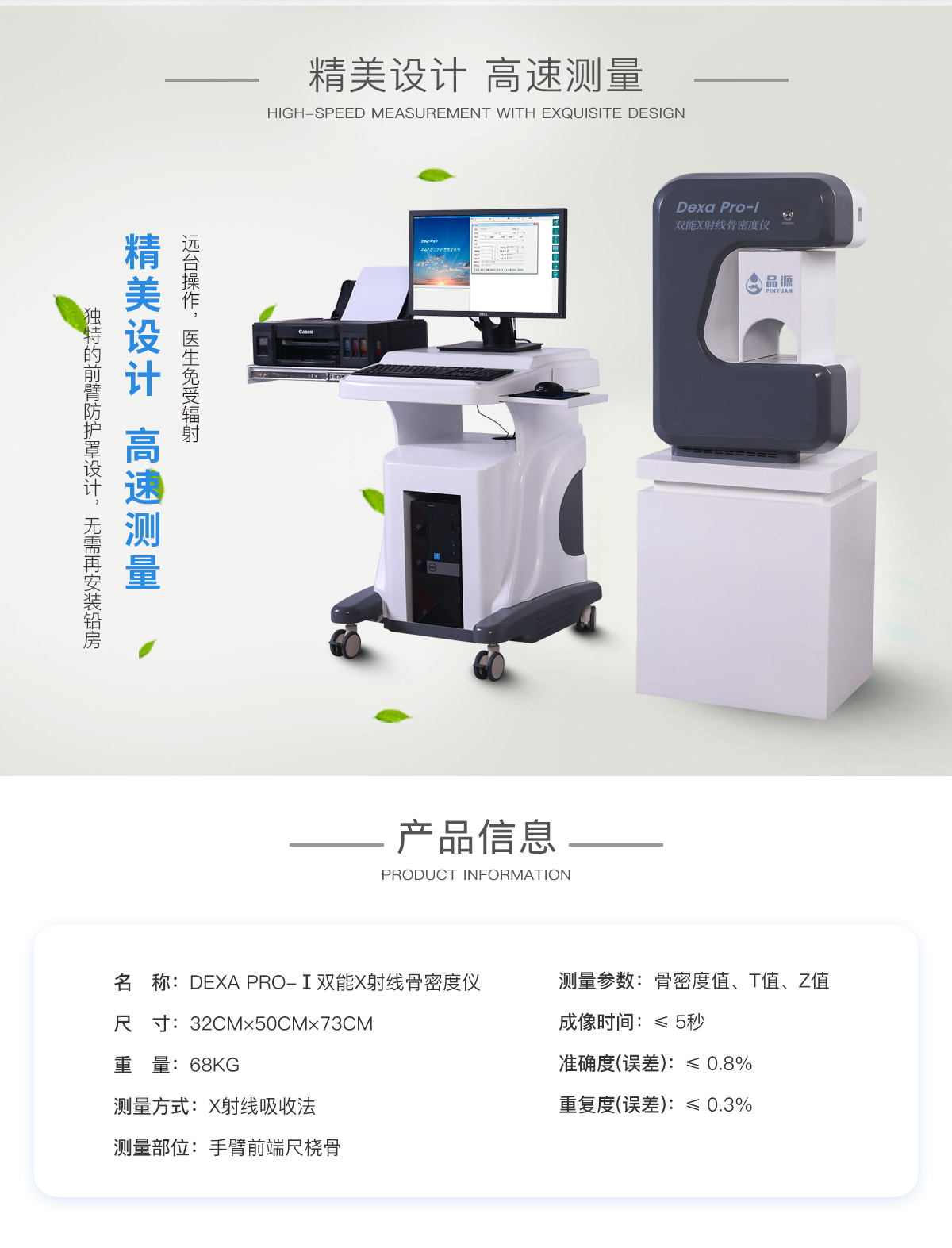

Dexa Pro-I 双能 X 射线骨密度仪
■安全优势:
1、低射线,微剂量:Dexa Pro 系列双能 X 射线骨密度仪,测量骨密度剂量,高能0.2 mA ,低能 0.4mA,剂量只有一次 X 线摄片剂量 1/200〜1/300,也只有全身双能 X 射线骨密度仪剂量的 1/30,被测人员检测一次受到的剂量相当于晒太阳 20 分钟剂量,几乎可以忽略不计。
2、独特的前臂防护盒设计:除测量部位前臂外实行全部防护,在检测时减少环境辐射剂量,除充分保护了被测人员安全, 也保护了周围人员的安全。
3、远台操作设计:设备设计为远台操作方式,主机与操作台之间只需要 1.5 米距离,不需任何防护,操作医生免受任何照射剂量,保证操作医生长期操作安全。
■操作优势:
Dexa Pro 系列双能 X 射线骨密度仪测量手臂前段,这些部位易显露,操作简捷,无需消毒。测量速度快,一个测量周期扫描时间小于 5 秒,测量速度快,方便医生及病人,可用于大人群检测。
■精度优势:
Dexa Pro 系列双能 X 射线骨密度仪测量骨密度,精度达到 99.2%,重复性达到 99.7%,高于一般双能 X 射线骨密度仪,是医生临床诊断好帮手。
